Adding CPI Helper
CPI Helper is a tool that allows integration developers to become more productive.
In Figaf we have added integration to it to ensure that you are able to work as smooth as possible with the tool.
Open an iFlow
Then you will see the following

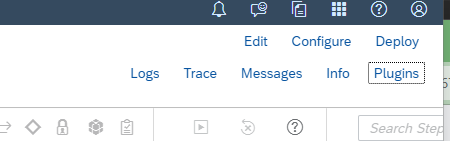

Click on the plugins
Go to the secion around Figaf and insert the url to your installation of Figaf without the / at the end
If you have the same agent for multiply cases you can use the Figaf ID of the tenant there.
Refresh the page with the iFlow on.

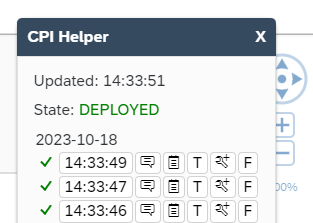

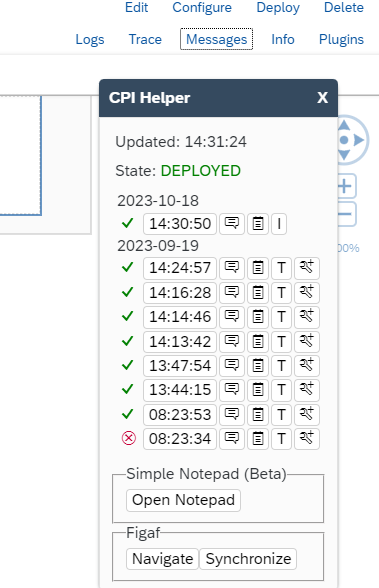

If you click on Messages you can see two Figaf Buttons
1) Navigate will allow you to go to the Figaf object and see what changes or what has happend with the tool
2) Syncronize opens a new tab where you can syncronize the iflow to Figaf, so figaf know where is a new version of the iflow
3) If you have created trace on an iflow and have processed a message you can click on the "F" Button this will then create a new test case in Figaf with that value

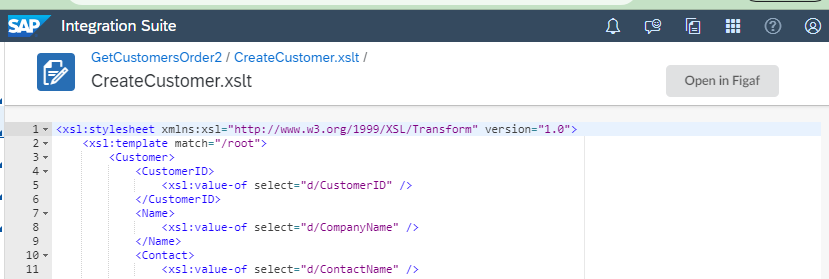

4) Navigate to Figaf Editor. If you have a Groovy or XSLT script you can easily navigate to Figaf by clicking the "Open in Figaf".
