Configure CPI agents

Configure CPI agents

Figaf tool supports both CPI platforms: Neo and Cloud Foundry. The configuration of such agents has some differences though there are lots of common settings. You can find details about all parameters here:
This is a common part.

The user should have the following roles assigned: PI_Administrator, PI_Business_Expert, PI_Integration_Developer.


CPI Platform Type: NEO.
IFLMap Host: Copy the underlined part of HTTP URL from any deployed IFlow (without "https://" and endpoint):

Cloud Foundry

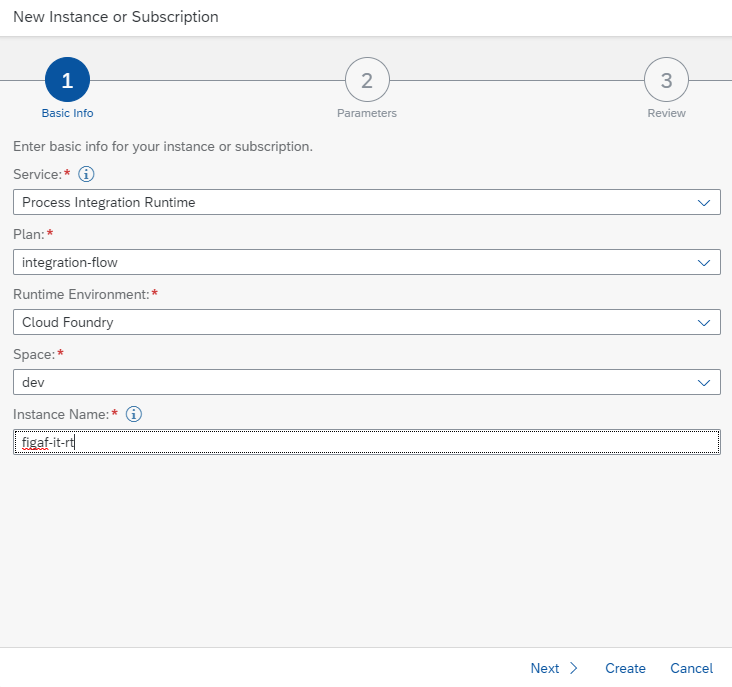

  1. Create Process Integration Runtime service.

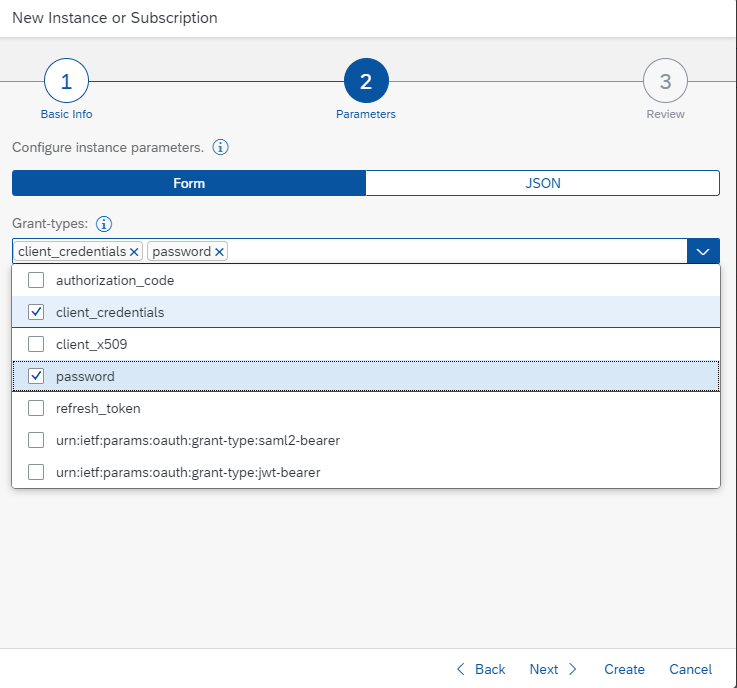

    Select client_credentials or/and password grant types. They are standard types of OAuth2 protocol. Both of them are supported in Figaf.
    If you have cf client installed, you can also create this service from the command line:
    cf create-service it-rt integration-flow figaf-it-rt -c it-rt.json
    (it-rt.json is attached to the article)

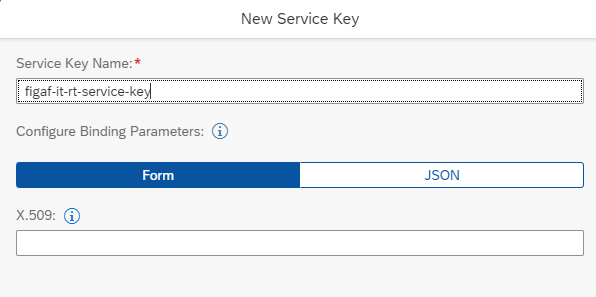

  2. Create a service key:

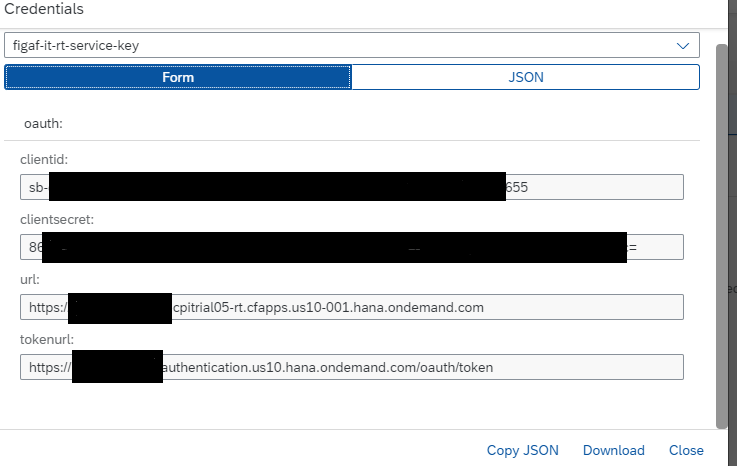

  3. View the generated credentials:

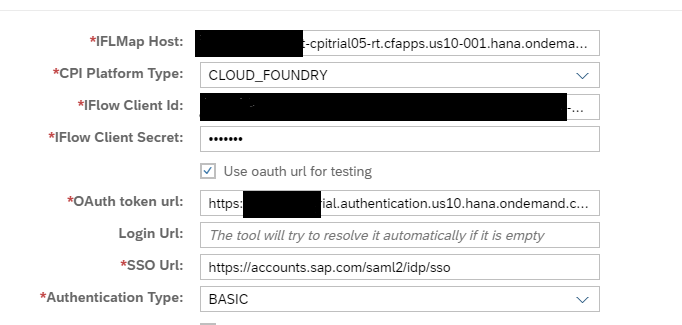

  4. Go back to the Figaf app. Fill in the needed values:
    IFLMap Host: copy the host part (without "https://") from the previous screenshot.
    CPI Platform Type: CLOUD_FOUNDRY.
    IFlow Client Id, IFlow Client Secret: copy the corresponding values.
    Enable "Use oauth url for testing" if you want to use "client_credentials" grant type.
    OAuth token url: copy the corresponding value.

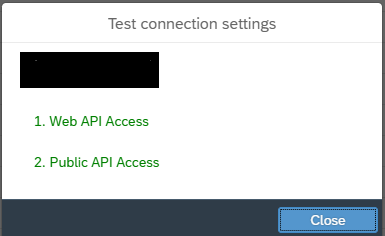

  5. Then save the Agent and click "Test configuration".
